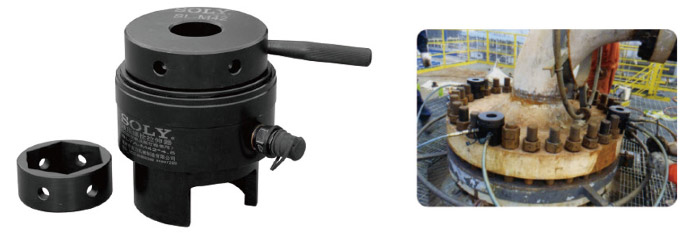

液壓螺栓拉伸器，SL-TB液壓螺栓拉伸器，TB螺栓拉伸器特點：
.工作壓力：0-1500BAR
.單臺拉伸器可配合多規格螺栓拉伸頭工作，可以節約成本
.速度快、精度高、可多臺拉伸器同步工作
.廣泛應用于:石油、化工、電力、風電、鋼鐵、重型機械、冶金、船舶、建筑、水泥等行業。
.螺栓拉伸器及泵的選配過程中.有任何疑問，請聯絡SOLY銷售工程師
| 型號 | 適用螺栓 (mm) |
拉伸力 (KN) |
重量 (kg) |
行程 (mm) |

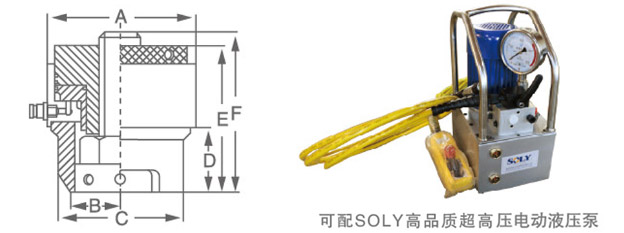

外形尺寸(mm) | |||||
| A | B | C | D | E | F | |||||
| SLTB0 | M20 | 155 | 1.3 | 10 | 71 | 25.0 | 62.0 | 34.5 | 91.5 | 129 |
| M22 | 155 | 1.3 | 10 | 71 | 25.0 | 62.0 | 34.5 | 91.5 | 132 | |
| SLTB1 | M24 | 282 | 3.5 | 10 | 85 | 32.0 | 68.0 | 43.0 | 112.0 | 155 |
| SLTB2 | M24 | 486 | 5.5 | 10 | 109 | 30.0 | 75.0 | 38.0 | 117.0 | 161 |
| M27 | 486 | 5.5 | 10 | 109 | 30.0 | 75.0 | 38.0 | 117.0 | 161 | |
| M30 | 486 | 5.5 | 10 | 109 | 30.5 | 80.0 | 41.0 | 120.0 | 169 | |
| M33 | 486 | 5.5 | 10 | 109 | 37.0 | 88.0 | 44.0 | 123.0 | 175 | |
| M36 | 486 | 5.5 | 10 | 109 | 38.5 | 96.0 | 47.0 | 126.0 | 181 | |
| SLTB3 | M33 | 814 | 7.0 | 12 | 132 | 37.0 | 88.0 | 44.0 | 127.0 | 176 |
| M36 | 814 | 7.0 | 12 | 132 | 38.5 | 96.0 | 47.0 | 130.0 | 182 | |
| M39 | 814 | 7.0 | 12 | 132 | 42.0 | 96.0 | 50.5 | 133.0 | 184 | |
| M42 | 814 | 7.0 | 12 | 132 | 41.5 | 108.0 | 53.5 | 136.0 | 195 | |
| SLTB4 | M39 | 989 | 10.0 | 12 | 150 | 42.0 | 113.0 | 50.0 | 134.0 | 195 |
| M42 | 989 | 10.0 | 12 | 150 | 45.5 | 113.0 | 53.5 | 137.5 | 202 | |
| M45 | 989 | 10.0 | 12 | 150 | 52.5 | 118.0 | 57.0 | 141.0 | 208 | |
| M48 | 989 | 10.0 | 12 | 150 | 51.0 | 114.0 | 60.0 | 144.0 | 214 | |
| SLTB5 | M52 | 1413 | 15.0 | 12 | 174 | 52.0 | 132.0 | 63.0 | 152.0 | 223 |
| M56 | 1413 | 15.0 | 12 | 174 | 58.0 | 138.0 | 69.5 | 158.0 | 235 | |
| SLTB6 | M56 | 1649 | 17.0 | 15 | 198 | 58.0 | 138.0 | 69.5 | 158.0 | 237 |
| M60 | 1649 | 17.0 | 15 | 198 | 58.0 | 138.0 | 69.5 | 158.0 | 237 | |
| M64 | 1649 | 17.0 | 15 | 198 | 63.5 | 153.0 | 76.0 | 164.0 | 250 | |
| M68 | 1649 | 17.0 | 15 | 198 | 76.0 | 164.0 | 82.0 | 170.0 | 263 | |
| SLTB7 | M72 | 2131 | 26.0 | 15 | 222 | 85.0 | 157.0 | 82.0 | 177.0 | 263 |
| M76 | 2131 | 26.0 | 15 | 222 | 80.0 | 180.0 | 89.0 | 170.0 | 276 | |
| SLTB8 | M76 | 2544 | 29.5 | 15 | 252 | 80.0 | 180.0 | 89.0 | 180.0 | 279 |
| M80 | 2544 | 29.5 | 15 | 252 | 80.0 | 180.0 | 89.0 | 180.0 | 279 | |
| M85 | 2544 | 29.5 | 15 | 252 | 95.0 | 190.0 | 95.0 | 186.0 | 291 | |
| M90 | 2544 | 29.5 | 15 | 252 | 102.5 | 205.0 | 101.0 | 192.0 | 304 | |
| SLTB9 | M95 | 3101 | 38.0 | 15 | 282 | 94.0 | 200.0 | 107.0 | 199.0 | 318 |
| M100 | 3101 | 38.0 | 15 | 282 | 103.0 | 210.0 | 114.0 | 216.0 | 318 | |
| SLTB10 | M105 | 3793 | 49.0 | 15 | 318 | 112.0 | 225 | 120.0 | 216.0 | 353 |
| M110 | 3793 | 49.0 | 15 | 318 | 112.0 | 225 | 120.0 | 216.0 | 353 | |
| M115 | 3793 | 49.0 | 15 | 318 | 112.0 | 225 | 120.0 | 216.0 | 353 | |
